GPIOgfx & S3Clock S3C64x0 Projects

20 March, 2010 - 08:13 — Tanguy

GPIOgfx is a tool made with Windev Mobile 14.
It was based on recent additions i coded on the HaReT Tool (check on this page...)

New (20 Mar 2010) : Updated S3Clock to fix TaskBar problem

New (22 Dec 2009) : S3Clock is a clock tool made with Visual Studio 2008, this tool can keep frequencies on wake up from sleep...

This tool is made ONLY for Samsung S3C6410, processors and will work only with a WVGA (480x800) screen. It was made for the Acer M900 and Samsung Omnia II, it could work on Chinese SmartQ 5/7 Tablet.

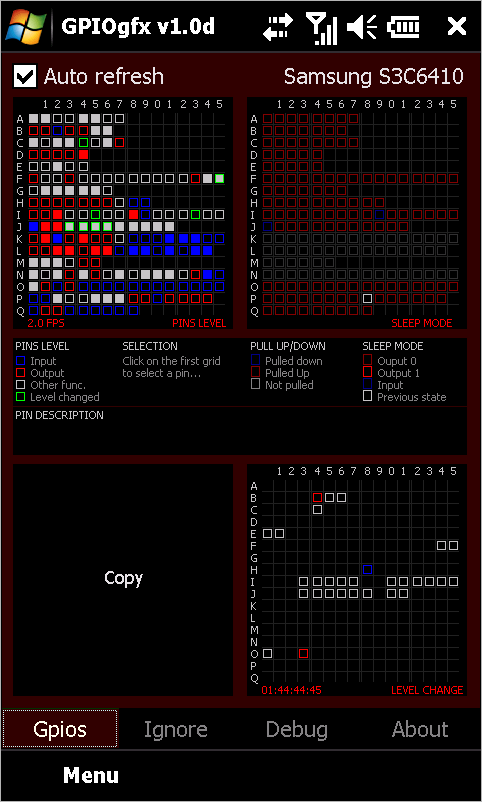

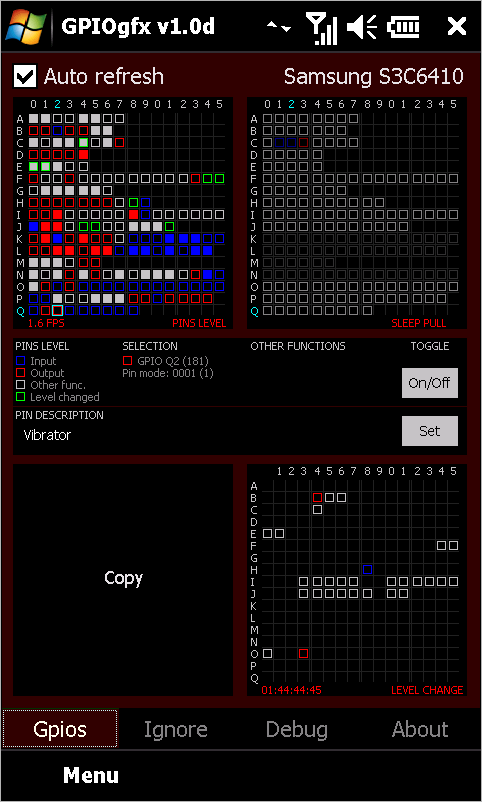

gpiogfx200.gif gpiogfx200v10d.gif gpiogfx200v11a.gif gpiogfx200v12a.gif

I made this tool to identify GPIO (Inputs/Outputs) of the device to prepare the Linux portage.

History :

22 Dec 2009 : S3Clock v1.0
  S3Clock is a clock tool made with Visual Studio 2008 (no framework needed)
  This tool can keep frequencies on wake up from sleep... please read the readme.txt file to know how to use it...

30 Nov 2009 - v1.2d
  Fixed Autoupdate, added net diagnostic tools

28 Nov 2009 - v1.2c
  Added Shortcut Tool to set speed in one click
  Added support for GA2 and LOUVRE platforms

26 Nov 2009 - v1.2a

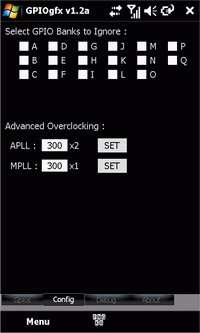

  User can now set manually APLL and MPLL frequency (config tab)

25 Nov 2009 - v1.1e
  Added smdk6410, s3c6400, octans (Omnia 2) platform support

24 Nov 2009 - v1.1a
  Affichage de la fréquence du CPU S3C6410 (APLL ARM 11)
  Modification de la fréquence du CPU S3C6410 (ARM 11) de 266 a 672 Mhz
  Modification du look, retour au tout noir, type Acer, ca rend bien sur cet écran je trouve :)

24 Nov 2009 - v1.0e
  Légère amélioration des performances (1 fps)
  Live update
  Gestion de plusieurs fichiers INI
  Possibilité d'ignorer certains GPIO, ou "BANKS", ce qui rend le programme plus réactif (passage de 6 à 10fps) en cas de besoin.
  Interface pour ajouter la description d'un GPIO dans le mode actuel
  Affichage des différentes fonctions d'un port
  Affichage du GPIO sélectionné sur la grille

23 Nov 2009 - v1.0c
  Sélection d'un port afin d'afficher la description des GPIO
  Possibilité de modifier l'état on/off d'un port configuré en sortie

REQUIREMENT:
DOWNLOAD Framework here : ftp://ftp2.pcsoft.com/DLL/14.0/US/InstallFramework_ARM.cab (can be installed on SD Card)
Pour la version francaise : Framework WM v14.030

NEW : Tool to configure S3Clock : Daskalos Easy Set S3Clock

Download here :
http://tanguy.ath.cx/?q=GPIOgfx#attachments
